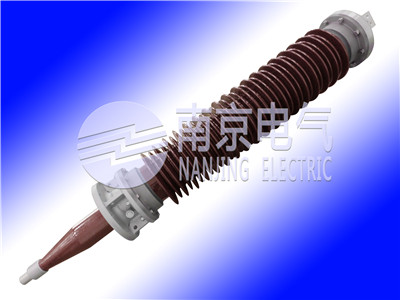

126kV 2000A GIS Lead-out Porcelain Bushing
126kV 2000A GIS Lead-out Porcelain Bushing
GIS Lead-out Bushing is suitable for GIS transformer substation. It adopts the capacitive voltage-sharing structure, for which the fiberglass is strengthened by immersing in epoxy resin and wrapped with solid insulation. The outdoor part of the bushing is free from SF6 gas, without the risk of air leakage, so there is no need for the inspection and maintenance during operation, Due to no insulation failure caused by temperature changes, It especially apply to the low temperature environment, and the bushing’s outstanding mechanical property can meet the high shock-resistance in service.
Product style: (F)ERG
Rated voltage: 126~550kV
Rated current: 630~6000A
