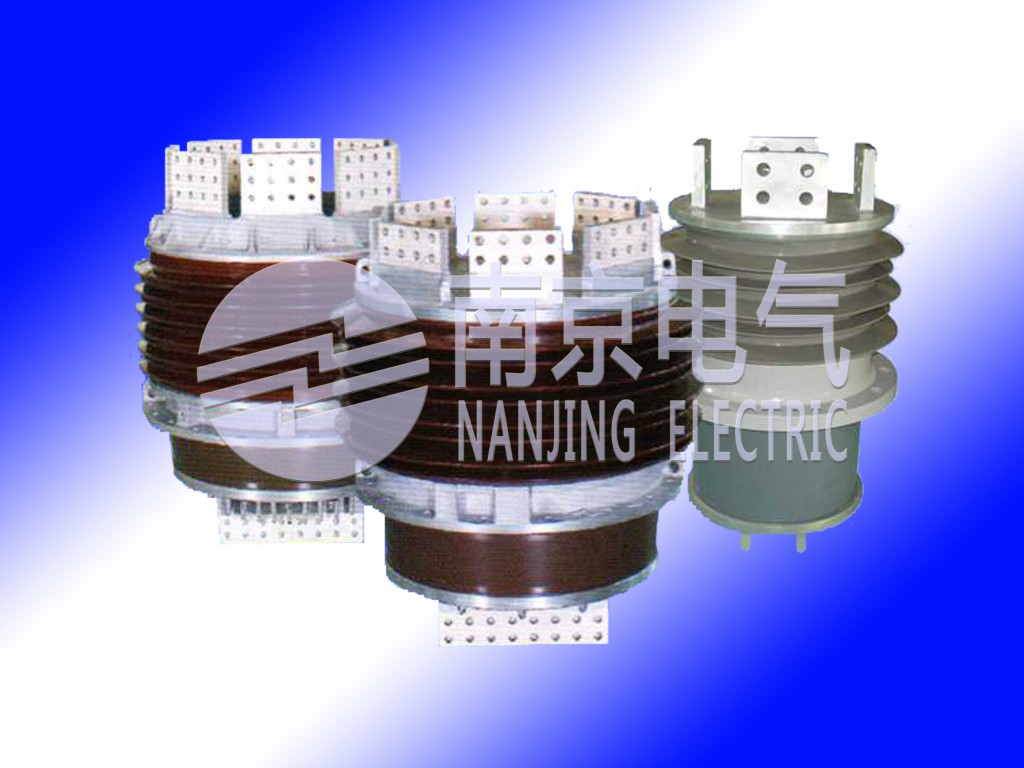

Low Voltage Heavy Current Bushing
Details
Dry-type Heavy Current Bushing is applicable for the connection between transformer and enclosed busbar, which can be installed horizontally, vertically or in any angles. Dry-type heavy current bushing adopts the capacitor voltage-sharing structure, for which the fiberglass is strengthened by immersing in epoxy resin and wrapped with solid insulation. The internal part of bushing is free from insulating oil, without the risk of oil leakage, so there is no need for the inspection and maintenance during operation. The adequate insulation margin design ensures that the partial discharge will not appear during the operation of bushing. No-interface and integral central conductors make the bushings possessed of superior dynamic thermal stability.
Product style: EBR
Rated voltage:10—40.5kV
Rated current: 6300~40000A
